Length range: form 0.2m to 5m
Wire rope DIA: ф0.8~ф3.0mm
Capacity: 2,000 pcs per hour

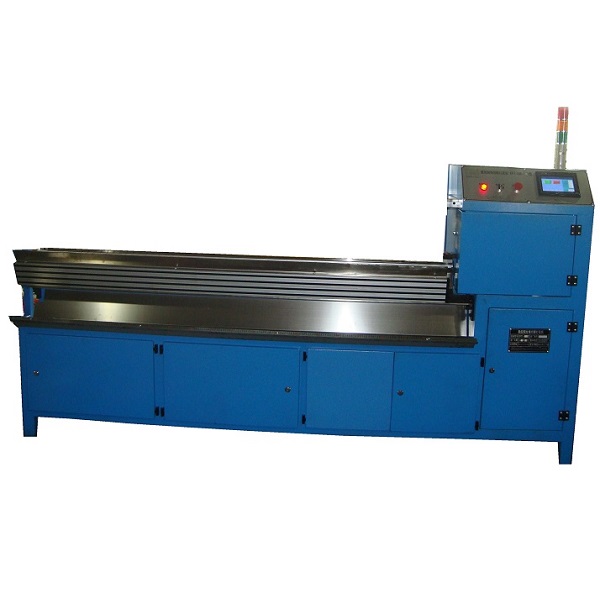

1. WIRE ROPE LENGTHING CUTTING AND END SHAPED LOSSEN MACHINE
1.1 Cutting diameter of cable: ф0.8~ф3.0mm (can be customization);
1.2 Cutting length: standard is 2m, (can be customization).
2. FOUR. MAIN PARAMETERS
2.1 Wire diameter: ф0.8 ～ ф3.0 mm (explain when ordering);
2.2. The fastest cutting speed: 35 pieces per minute 1 meter long;
2.3 Air pressure: 0.6-0.8 Mpa;
2.4. Power supply: AC380V 50HZ 1.5 KW;
2.5 Space occupied by equipment after installation: 2500 × 955 × 820 mm
2.6. Equipment weight: 500 KG
OPERATION WAY:
1 Continuously length cutting and end shaped loosen of each diameter wire rope.
2. Automatically insert the wire rope from the shelf.
3. Set the quantity no,s of wire you want to cut, when reach to this qty will be stop automtically
4 Have two main function: on screen has all kinds functions belows can be chosen depends on your demand:
4.1 cutting cutting
4.2 welding+cutting.
4.3 welding welding

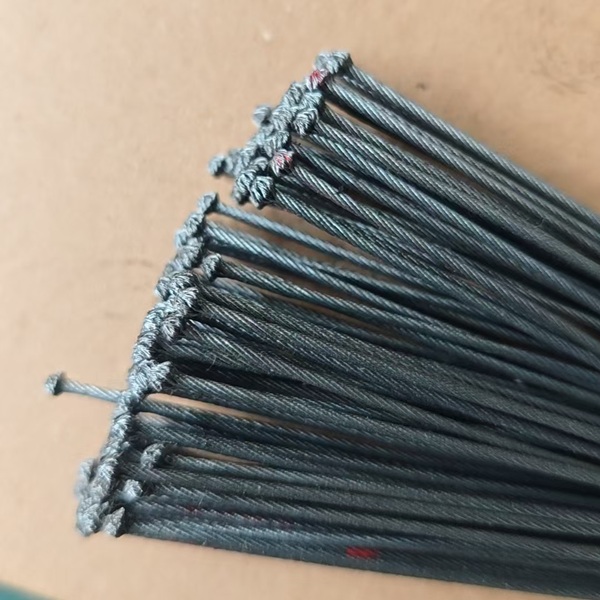

4.4 cutting +cutting+ end flower
4.5 welding ++cutting+ end flower
4.6 welding+welding +end flower
4.7 welding cutting+end flower.
We are leading manufacturer for outer casings, galanised wire ropes,speedometerwires. Cable components for motorcycle and cars. Truck marine bus Push pull cables ,brushcutter flexible shafts.
