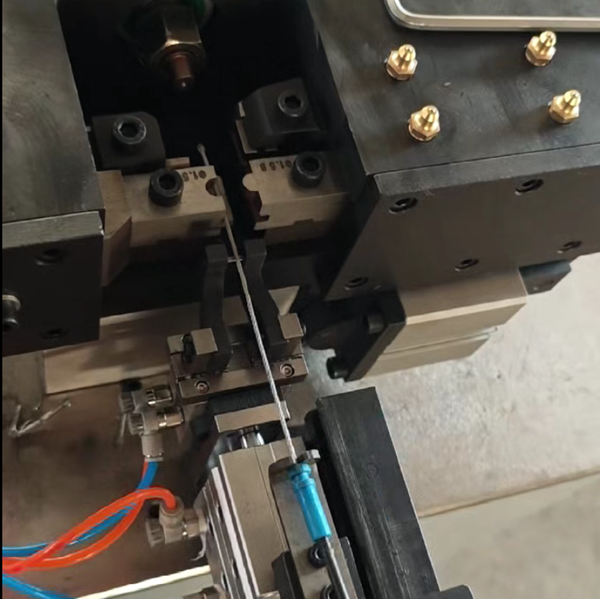

CUT STROKES MAKE END FLOWER MACHINE (AIR TENSIONING OF WIRE ROPE)

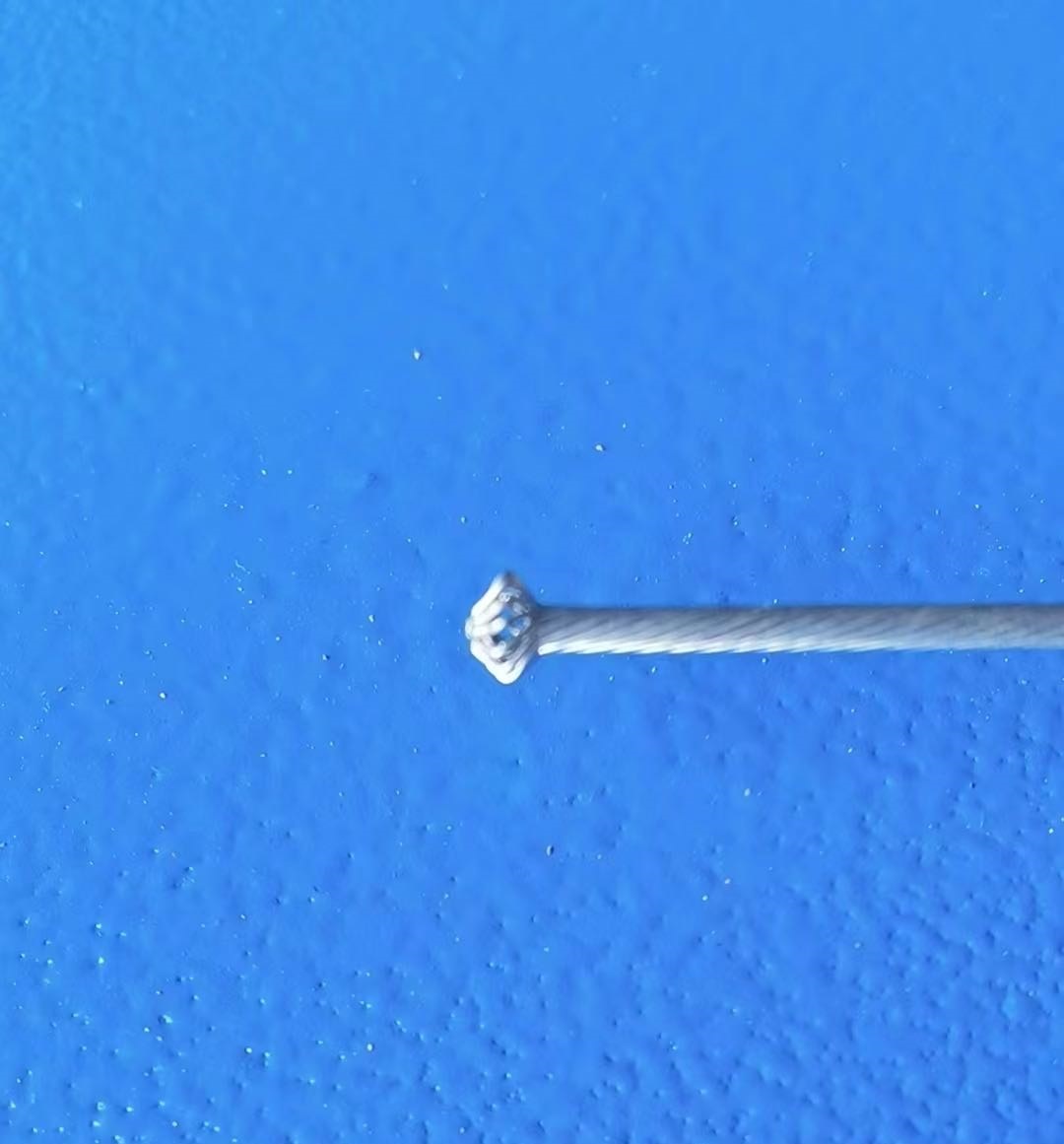

PRODUCE COMPLETE CABLE 2ND WIRE ROPE FLOWER, EASILY OPERATION

HIGH CAPACITY: 1,500-3,500PCS/HOUR

AIR TENSIONING OF WIRE ROPE, MADE THE STROKE MORE PRECISE

Request A Quote Contact Us

CUT EXTRA WIRE END FLOWER MACHINE

USED FOR COMPLETE CABLE 2ND END WIRE FLOWER, EASILY OPERATION.

1. Air tensioning of steel wire rope, made the stroke more precise;

2. Power supply: AC220V 50Hz 100W, ( it can be customizstion );

3. Processing steel wire rope DIA: Ø1-3.5mm if need make more bigger diameter can make also , discuss with us before place an order;

4. Equipment size: L580mm * W580mm * H1300mm;

5. Preparation before starting: Connect the power supply and air pressure, the air pressure is maintained between 0.5 ~ 0.8 Mpa;

6. Capacity: 1,500-3,500pcs per hour;

7. Can set if make end flower or not make end flower.
